YGM95 Limestone Grinding Mill Plant in Uzbekistan

Capacity:

Capacity: 2-5 tph

Output size:

100-425 mesh

Material:

Limestone, calcium carbonate, gypsum, quartz

Configuration:

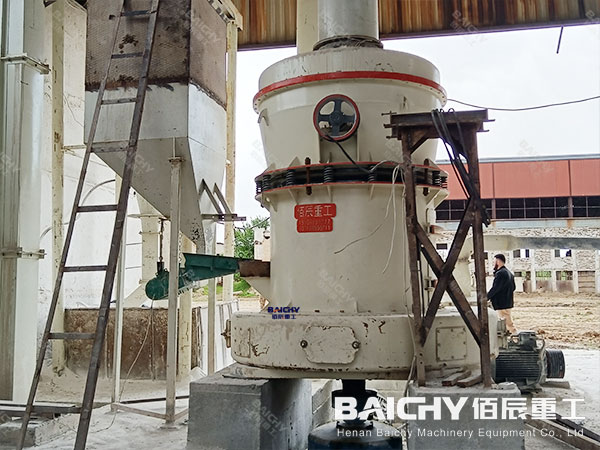

Small jaw crusher PE250X400, raymond mill YGM95, hopper, electro-vibrating feeder, cyclone collector, bag filter, electrical cabinet

Get Price List

Leave Message

Gallery

send e-mail hnbc@baichy.com

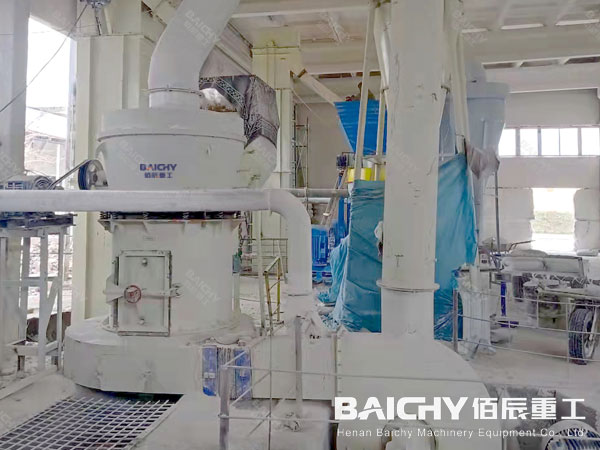

About Limestone Grinding Mill in Uzbekistan

A limestone processing plant in Uzbekistan has successfully implemented the YGM95 high-pressure Raymond grinding mill for producing fine limestone powder. Limestone is widely used in Uzbekistan’s growing construction and industrial sectors as a filler for cement, building materials, and refractory products . The YGM95 model has proven to be one of the most popular choices for limestone grinding in the region due to its balanced capacity and cost-effectiveness

Key Benefits of the YGM95 for Limestone Processing

1. High Efficiency: Under the same power conditions, production capacity increases by 10-20% compared to traditional mills, thanks to the high-pressure spring system

2. Fine & Uniform Product: Achieves up to 99% passing ratio with consistent particle size distribution

3. Wide Application Range: Processes materials with Mohs hardness up to 9.3 and humidity below 6%, including limestone, calcite, barite, dolomite, talc, gypsum, and more

4. Adjustable Fineness: Output ranges from coarse (30 mesh/0.613 mm) to fine (425 mesh/0.033 mm), with some materials reaching 1000 mesh

5. Compact Footprint: Vertical structure with strong systematic characteristics occupies minimal floor space

6. Environmental Compliance: Closed-loop airflow system with cyclone and bag filter ensures dust emissions meet national standards

7. Reliable Operation: Centralized electric control enables high automation with minimal operator intervention

Complete Equipment Configuration

A complete YGM95 grinding plant includes the following interconnected equipment :

1. Jaw Crusher (PE 200×350 or 250×400): Reduces large limestone blocks to ≤25mm, ensuring proper feed size for the mill

2. Bucket Elevator: Transports crushed material vertically to the storage hopper, enabling continuous operation

3. Storage Hopper: Holds prepared material for controlled feeding

4. Electromagnetic Vibrating Feeder (GZ1F): Uniformly and continuously feeds material into the grinding chamber at adjustable rates

5. YGM95 Main Grinding Unit: The core equipment where limestone is pulverized

6. Centrifugal Classifier (Analyzer): Separates fine powder from coarse particles; oversized material returns for regrinding

7. Cyclone Collector: Captures finished powder from the airflow

8. Pulse Bag Filter (Dust Collector): Ensures environmental compliance by capturing residual dust

9. High-Pressure Blower: Provides circulating airflow throughout the system

10. Central Electric Control Cabinet: Enables centralized monitoring and operation of the entire plant

Limestone Grinding Process

The raw limestone is first crushed by the jaw crusher into small particles suitable for grinding. The crushed material is transported by bucket elevator to the storage hopper and then evenly fed into the YGM95 grinding mill through the vibrating feeder.

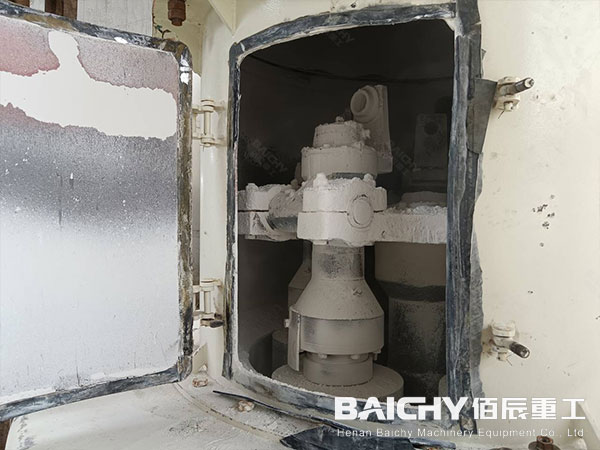

Inside the grinding chamber, the grinding rollers rotate around the central shaft and press the limestone material against the grinding ring under high-pressure spring force. The ground powder is lifted by airflow to the classifier.

Qualified fine powder enters the cyclone collector as finished product, while coarse particles return to the grinding chamber for additional grinding. The final limestone powder is collected and packed automatically for transportation and industrial use.

The entire production line operates in a closed-loop airflow system, reducing dust leakage and improving workshop cleanliness.

Why Choose Baichy Machinery

Baichy Machinery specializes in mining and powder grinding equipment with extensive export experience worldwide. The company provides complete grinding plant solutions for limestone, gypsum, calcite, dolomite, barite, and other non-metallic minerals. Baichy offers:

● Customized grinding plant solutions
● Professional technical consultation
● Installation and commissioning support
● Spare parts supply
● Global after-sales service
● ISO and CE certified equipment

The company’s Raymond grinding mills are widely exported to Africa, Central Asia, the Middle East, and Southeast Asia.

Crushing Solutions Design

Baichy Machinery can customize a crushing plant for you based on the specific conditions of your project: such as the construction site, hardness of the raw materials, output, output size, budget, etc.

On-site Installation & Training

Our team provides on-site installation and thorough training to ensure safe operation of the crushing plant.

Quality Control & Global Delivery

Rigorous quality checks ensure compliance with standards, and we handle worldwide delivery to your location.

After-Sales Support

Baichy Machinery provides you with spare parts supply, project transformation, investment return analysis, etc.

Crushing Solutions Design

On-site Installation & Training

Quality Control & Global Delivery

After-Sales Support

Frequently Asked Questions (FAQs)

Find answers to the most common questions about Baichy Machinery. If you can’t find what you’re looking for here, please contact us.

1. What is the difference between YGM95 and traditional Raymond mills?

The YGM95 adds a high-pressure spring system that increases grinding force by 1500-2000kg, boosting capacity by 10-20% under the same power compared to traditional R-series mills. It also features better sealing and easier fineness adjustment.

2. What materials can the YGM95 process besides limestone?

It processes over 400 non-flammable, non-explosive materials with Mohs hardness ≤9.3 and humidity ≤6% , including gypsum, barite, dolomite, calcite, marble, talc, kaolin, bentonite, phosphate rock, feldspar, quartz, and carbon black.

3. What is the correct startup steps for a YGM95 plant?

Startup order: Bucket elevator → Jaw crusher → Classifier → Blower → Main mill (idle ≤2 minutes) → Feeder. Shutdown (reverse): Stop feeder → Let mill empty (~1 min) → Stop mill → Stop blower after 30 sec → Stop classifier.

4. How do I adjust the finished product fineness?

Adjust fineness by increasing classifier speed for finer powder, or reducing airflow for coarser powder. Test samples frequently to verify results. Consistent feed rate is also critical for uniform fineness.
